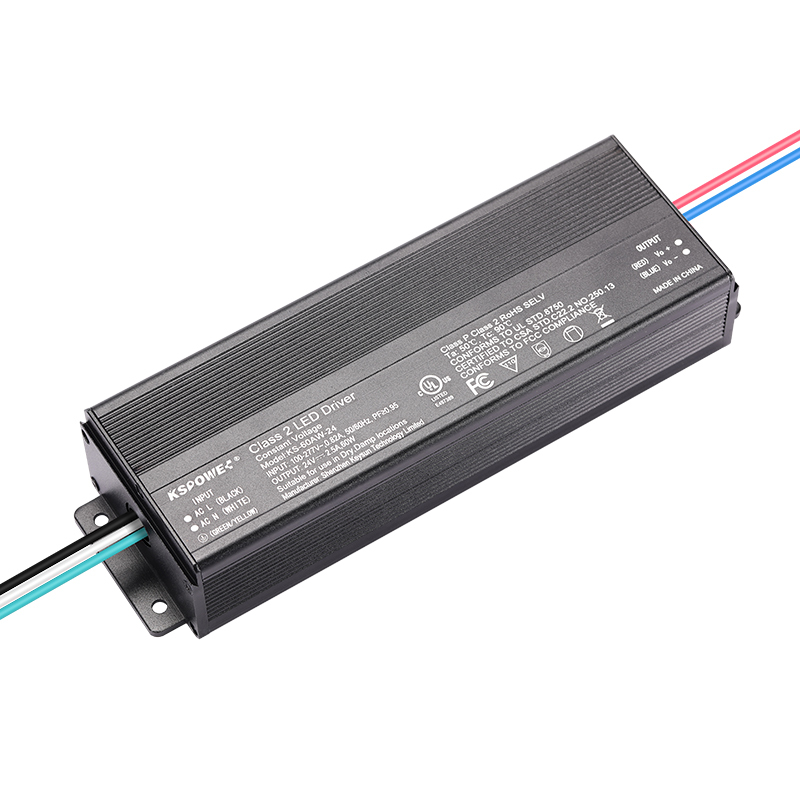

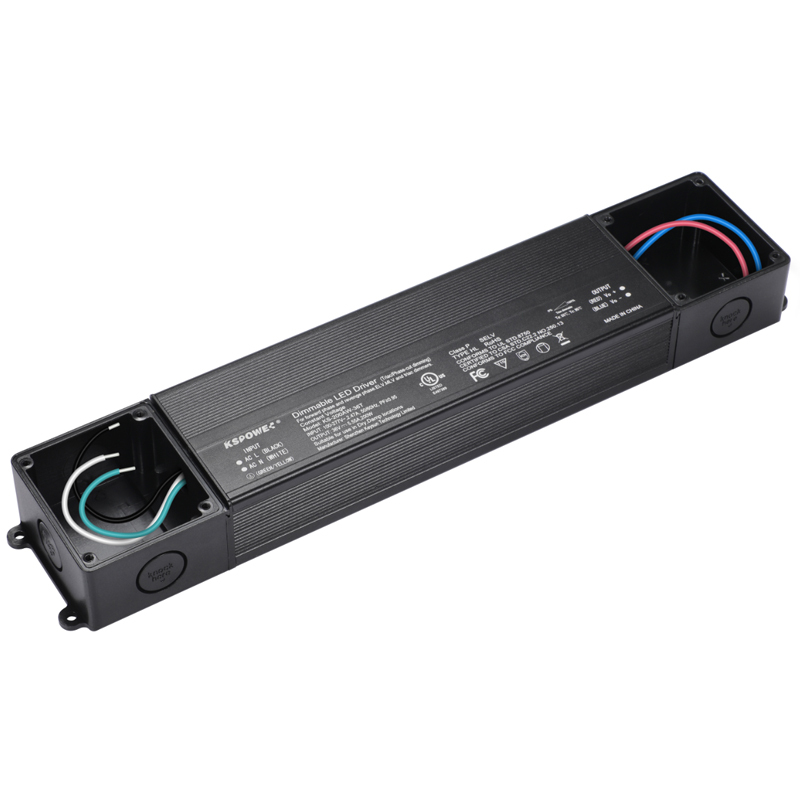

Triac Phase-cut Dimmable 12V 80W dimmable led driver IP65 Class P UL/cUL listed with junction Box

Item No.: 00309
◆Triac/Phase-cut Dimmable LED Driver
◆UL8750 Class 2 UL/cUL listed
◆Universal AC input voltage 100-277VAC
◆Built-in active PFC function
◆Protection: OCP, OVP, SCP, OTP
◆Typical lifetime > 50,000 hours
◆IP65 Rated Enclosure for Indoor and Outdoor Us
  • Output:
    12V80W
    24V80W
    36V80W
    48V80W
  • Dimmable Options:
    Triac/Phase-cut Dimmable
    Non-dimmable
    4 in 1 dimmable
    5 in 1 dimmable
Description Model In the list Product Structure Packing & Shipping
Description

Triac Phase-cut Dimmable LED Driver 80W 12V is one black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL and CE GS FCC RoHS safety approvals. The led dimmable Power Supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 environment Protection Rating for indoor or outdoor use, Our products provide 5 years warranty and outstanding led dimming peformance.

Product Attributes

Model No.KS-80AW-12T

BrandKSPOWER

place of originChina

Output Power80W

Output typeSingle

The output voltage12V

Power Supply ModeConstant Voltage Source

Efficiency92%

MaterialAluminum Case

PFC Max.>0.95

ColorBlack

Input100v-277vac

Warranty5 Years

ProtectionsOCO OVP SCP LPS

Envir. Protection RatingIndoor Or Outdoor Use

Output TypePwm Output

CertificationTUV GS CE UL

UsageLed Strip Light, Led Puck Light, Module Light

Features

 IP65 Design and UL Dry / Damp / Wet Location

Single channel & PWM style output

TYPE HL for use in a Class I hazardous location

 Flicker-free

Continuous Smooth

 Protection: OCP, OVP, SCP, OTP

 Limited Power Source

 UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

 Perfectly suitable for all kind of outdoor LED strip lighting, architectural, decorative and signage applications etc

◆ 100% full load burn-in test

◆ 5 years Warranty

Dimming Connect Drawing:

Model In the list
Product Model Number Max.Watts Output Voltage(V) Output Current(A) PF Warranty
KS-80AW-12T 80W 12V 6.67A 0.95(115VAC) 5 Years
KS-80AW-24T
80W 24V 3.34A 0.95(115VAC)
5 Years
KS-80AW-36T
80W 36V 2.23A 0.95(115VAC)
5 Years
KS-80AW-48T 80W 48V 1.67A 0.95(115VAC) 5 Years

Product Structure

Packing & Shipping
Packing Info: Pcs/CTN Dimension/Carton Dimension/unit Weight/CTN Weight/pcs
OEM package 20Pcs 35.5*33*19.5cm 313*65*40mm 16Kg 0.78KG
