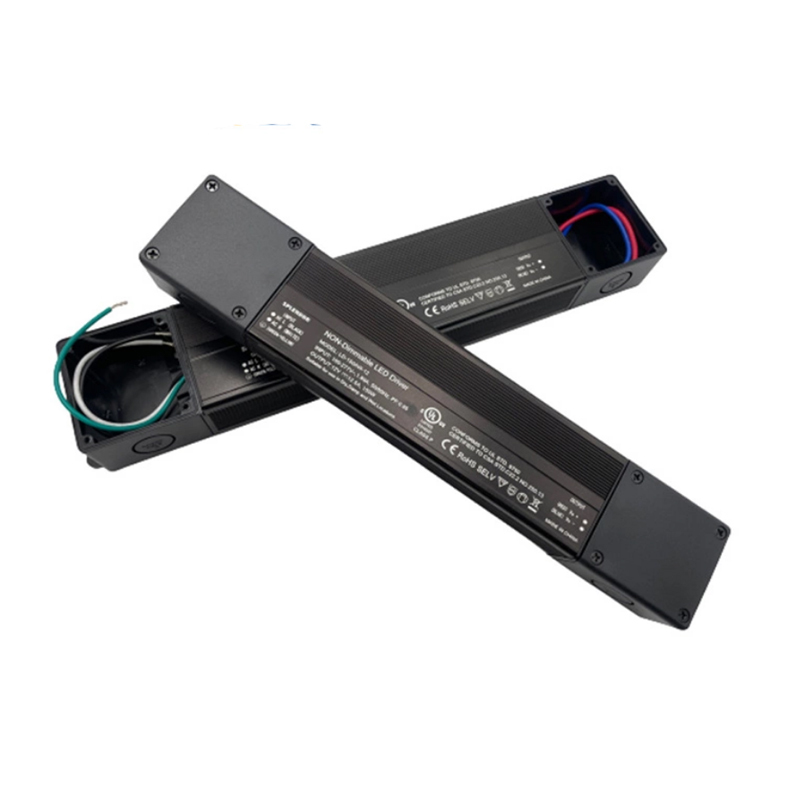

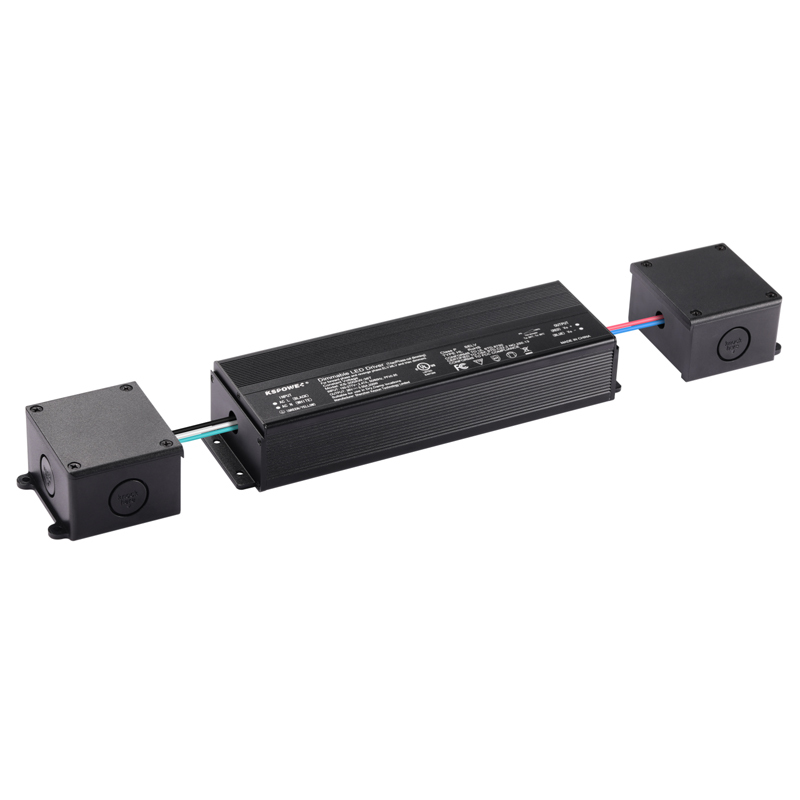

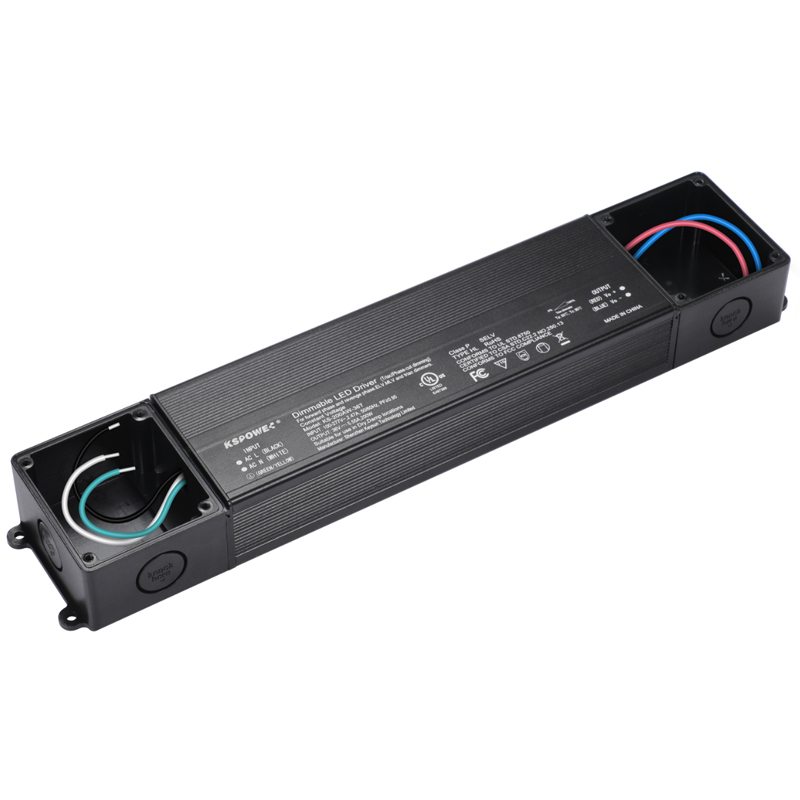

Triac Phase-cut Dimmable 12V 120W dimmable led driver IP65 Class P UL/cUL listed with junction Box

Item No.: 00308
◆Triac/Phase-cut Dimmable LED Driver
◆UL8750 Class 2 UL/cUL listed
◆Universal AC input voltage 100-277VAC
◆Built-in active PFC function
◆Protection: OCP, OVP, SCP, OTP
◆Typical lifetime > 50,000 hours
◆IP65 Rated Enclosure for Indoor and Outdoor Us
  • Output:
    12V120W
    24V120W
    36V120W
    48V120W
  • Dimmable Options:
    Triac/Phase-cut Dimmable
    Non-dimmable
    4 in 1 dimmable
    5 in 1 dimmable
Description Model In the list Product Structure Packing & Shipping
Description

Triac Phase-cut Dimmable LED Driver 120W 12V is one black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL and CE GS FCC RoHS safety approvals. The led dimmable Power Supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 environment Protection Rating for indoor or outdoor use, Our products provide 5 years warranty and outstanding led dimming peformance.

Product Attributes

Model No.KS-120AW-12T

BrandKSPOWER

place of originChina

Output Power120W

Output typeSingle

The output voltage12V

Power Supply ModeConstant Voltage Source

Efficiency92%

MaterialAluminum Case

PFC Max.>0.95

ColorBlack

Input100v-277vac

Warranty5 Years

ProtectionsOCO OVP SCP LPS

Envir. Protection RatingIndoor Or Outdoor Use

Output TypePwm Output

CertificationTUV GS CE UL

UsageLed Strip Light, Led Puck Light, Module Light

Features

 IP65 Design and UL Dry / Damp / Wet Location

Single channel & PWM style output

TYPE HL for use in a Class I hazardous location

 Flicker-free

Continuous Smooth

 Protection: OCP, OVP, SCP, OTP

 Limited Power Source

 UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

 Perfectly suitable for all kind of outdoor LED strip lighting, architectural, decorative and signage applications etc

◆ 100% full load burn-in test

◆ 5 years Warranty

Dimming Connect Drawing:

Model In the list
Product Model Number Max.Watts Output Voltage(V) Output Current(A) PF Warranty
KS-120AW-12T
120W
12V 10A 0.98(115VAC)
5 Years
KS-120AW-24T
120W
24V
5A
0.98(115VAC)
5 Years
KS-120AW-36T
120W
36V
3.3A
0.98(115VAC)
5 Years
KS-120AW-48T
120W
48V
2.5A
0.98(115VAC)
5 Years

Product Structure
Packing & Shipping
Packing Info: Pcs/CTN Dimension/Carton Dimension/unit Weight/CTN Weight/pcs
OEM package 15Pcs 40*37.5*16.5cm 358*65*45mm 15Kg 0.95KG
