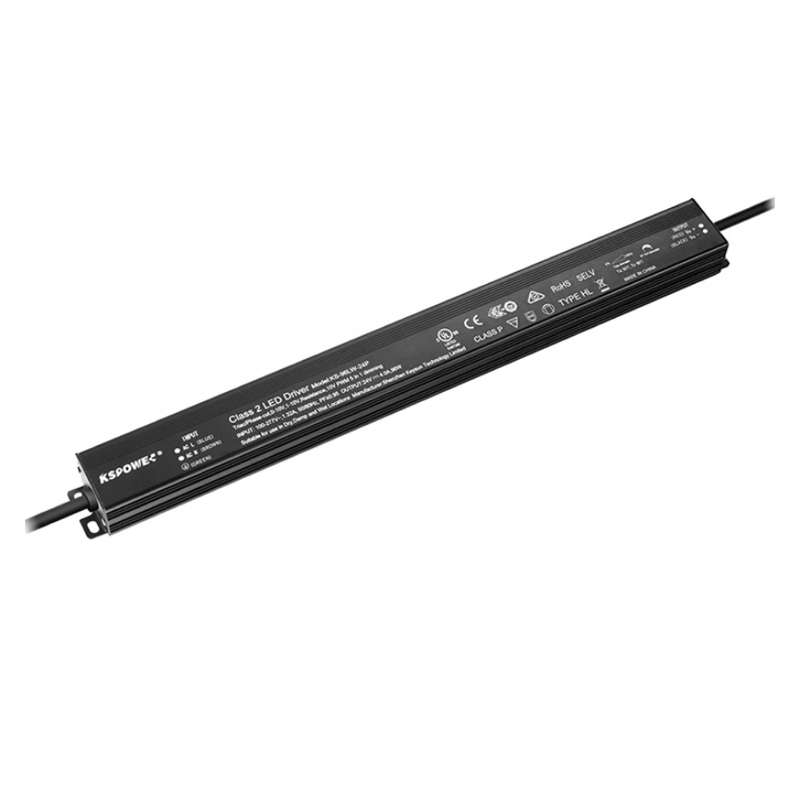

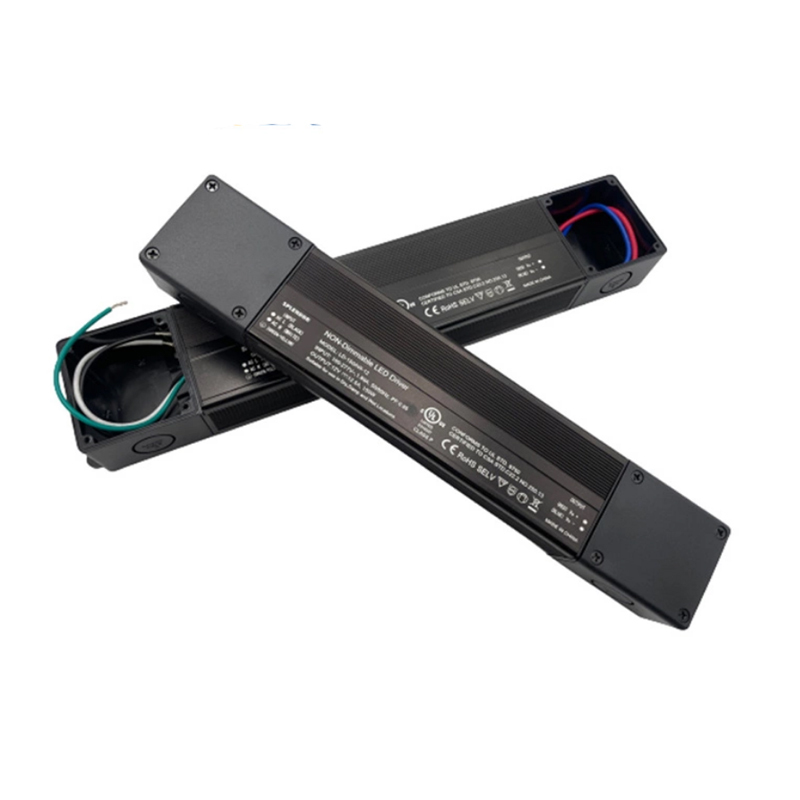

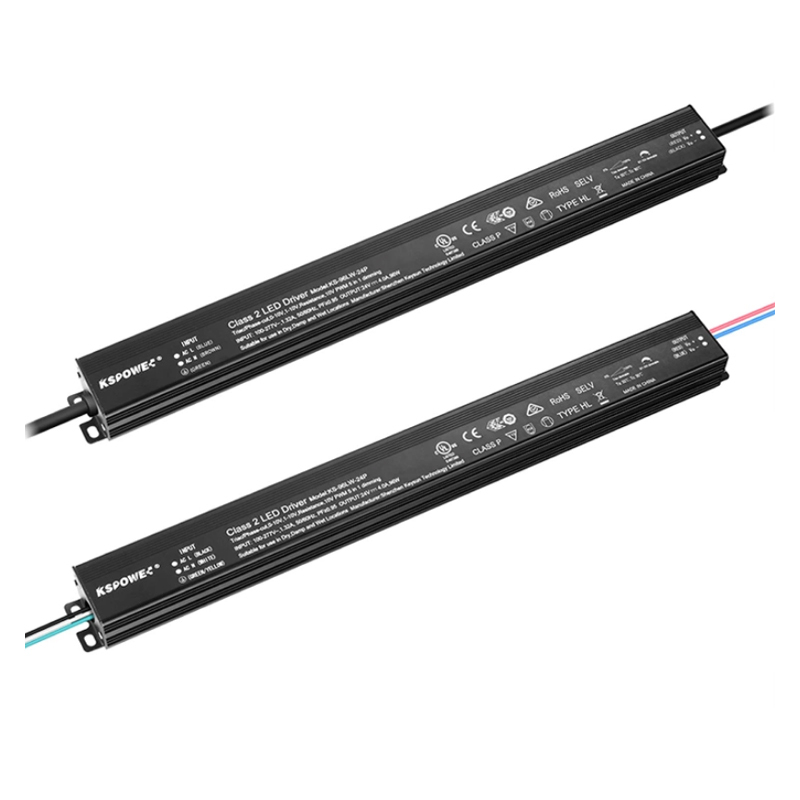

Triac Phase-cut Dimmable 24V 96W dimmable led driver IP65 Class 2 UL/cUL listed with junction Box

No.00304
◆Triac/Phase-cut Dimmable LED Driver ◆UL8750 Class 2 UL/cUL listed ◆Universal AC input voltage 100-277VAC ◆Built-in active PFC function ◆Protection: OCP, OVP, SCP, OTP ◆Typical lifetime > 50,000 hours ◆IP65 Rated Enclosure for Indoor and Outdoor Us
Output:
12V96W
24V96W
36V96W
48V96W
Dimmable Options:
Triac/Phase-cut Dimmable
Non-dimmable
4 in 1 dimmable
5 in 1 dimmable
  • Triac Phase-cut Dimmable 24V 96W dimmable led driver IP65 Class 2 UL/cUL listed with junction Box
  • Triac Phase-cut Dimmable 24V 96W dimmable led driver IP65 Class 2 UL/cUL listed with junction Box
  • Triac Phase-cut Dimmable 24V 96W dimmable led driver IP65 Class 2 UL/cUL listed with junction Box
  • Triac Phase-cut Dimmable 24V 96W dimmable led driver IP65 Class 2 UL/cUL listed with junction Box
  • Triac Phase-cut Dimmable 24V 96W dimmable led driver IP65 Class 2 UL/cUL listed with junction Box
  • Triac Phase-cut Dimmable 24V 96W dimmable led driver IP65 Class 2 UL/cUL listed with junction Box

Description

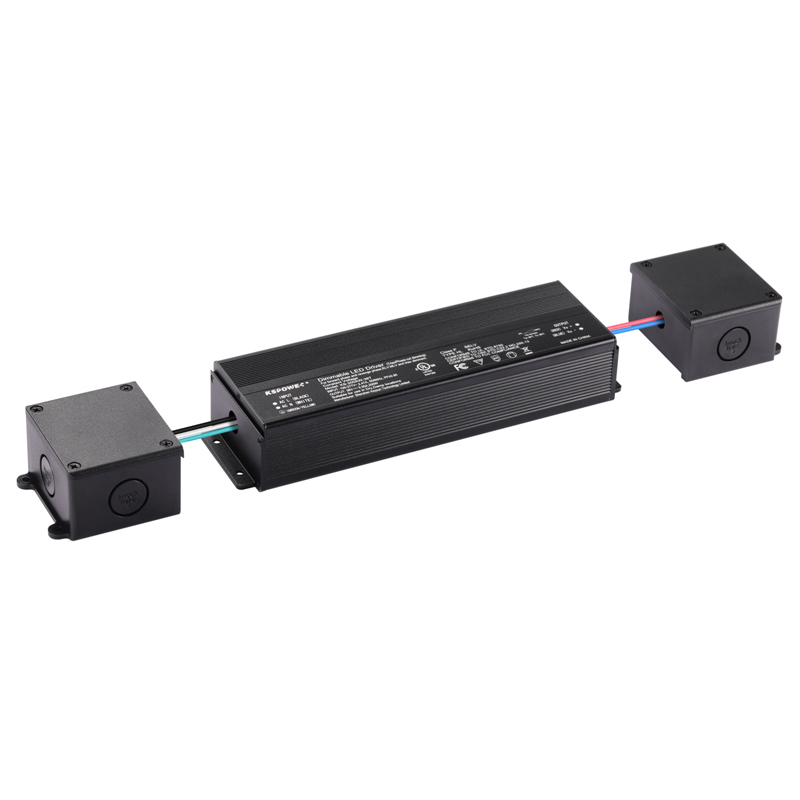

Triac Phase-cut Dimmable LED Driver 96W 24V is one black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL and CE GS FCC RoHS safety approvals. The led dimmable Power Supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 environment Protection Rating for indoor or outdoor use, Our products provide 5 years warranty and outstanding led dimming peformance.

Product Attributes

Model No.KS-96AW-24T

BrandKSPOWER

place of originChina

Output Power96W

Output typeSingle

The output voltage24V

Power Supply ModeConstant Voltage Source

Efficiency92%

MaterialAluminum Case

PFC Max.>0.95

ColorBlack

Input100v-277vac

Warranty5 Years

ProtectionsOCO OVP SCP LPS

Envir. Protection RatingIndoor Or Outdoor Use

Output TypePwm Output

CertificationTUV GS CE UL

UsageLed Strip Light, Led Puck Light, Module Light

Features

 IP65 Design and UL Dry / Damp / Wet Location

Single channel & PWM style output

TYPE HL for use in a Class I hazardous location

 Flicker-free

Continuous Smooth

 Protection: OCP, OVP, SCP, OTP

 Limited Power Source

 UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

 Perfectly suitable for all kind of outdoor LED strip lighting, architectural, decorative and signage applications etc

◆ 100% full load burn-in test

◆ 5 years Warranty

Dimming Connect Drawing:
